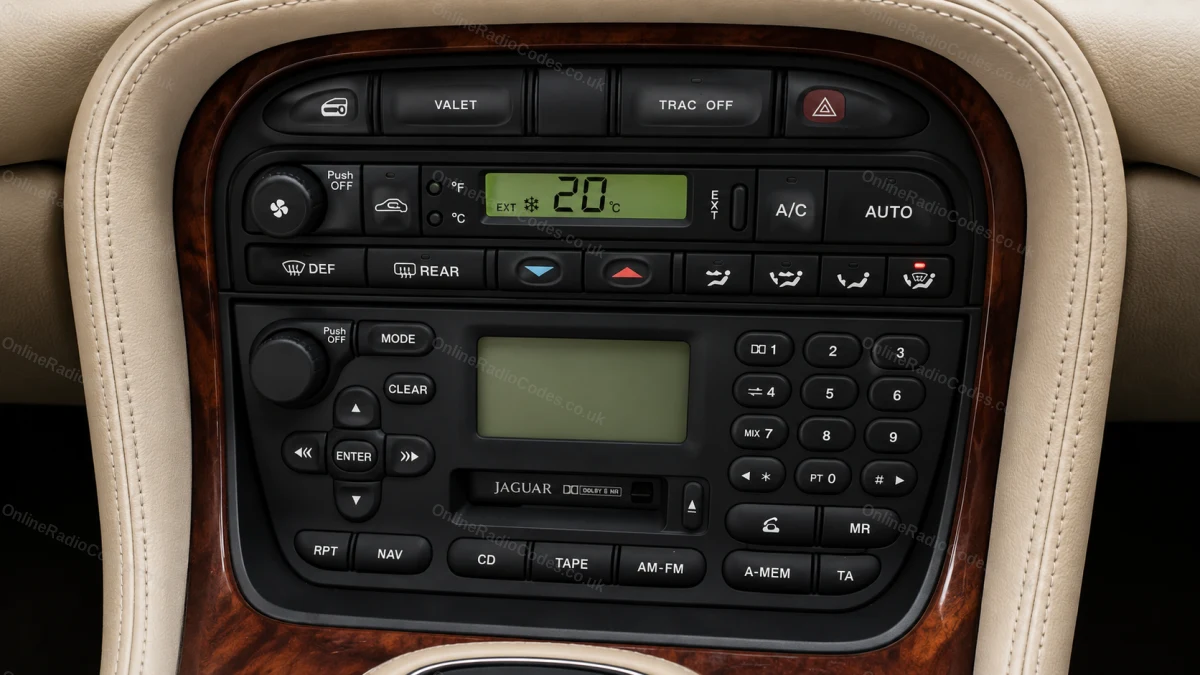

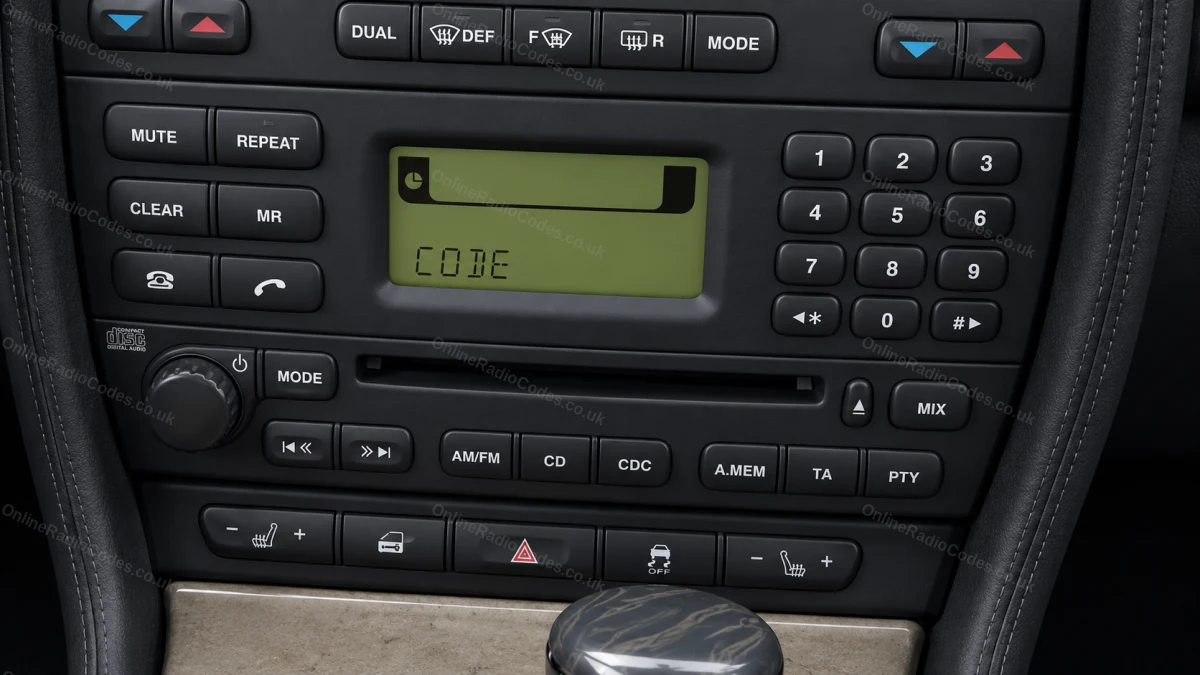

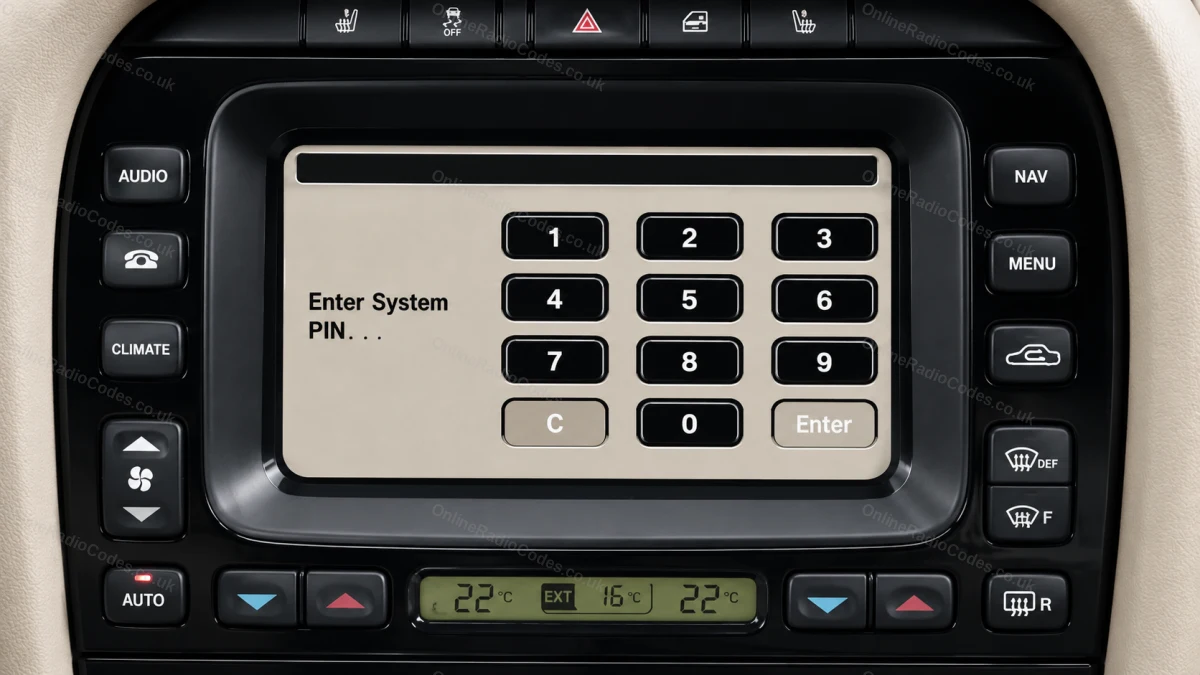

To remove your radio this will require some prying tools to lift the trim around your radio as shown in the picture example. Once this is done you will have acess to four screws that keep your radio in place, Remove these screws and put in a safe place. Your Jaguar stereo will now be loose and free to pull forwards.
*Please note there is no need to disconnect any wires through this process.

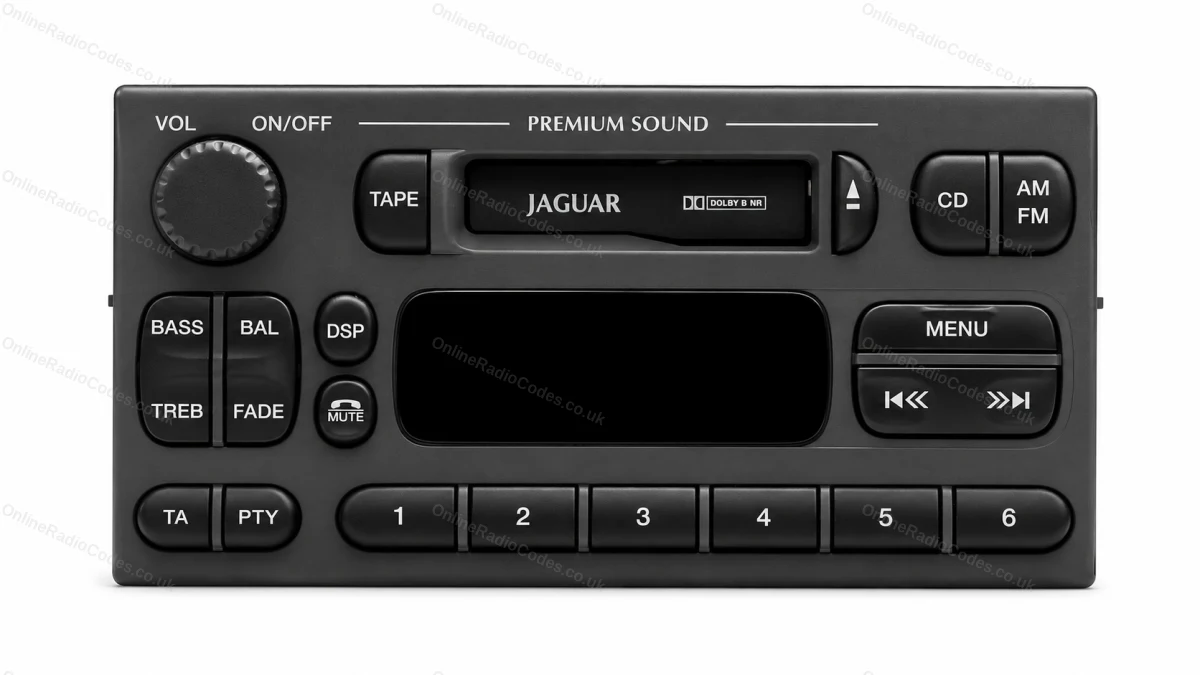

It is quite simple to remove your Jaguar radio. You will need a set of radio release keys . These are inexpensive and are around £3 - £5, from your local Halfords.
Once you have the radio release keys, push them into the holes in each corner of the radio, apply a little pressure and the radio will release from the dashboard. The radios label will be located on the radio's casing.

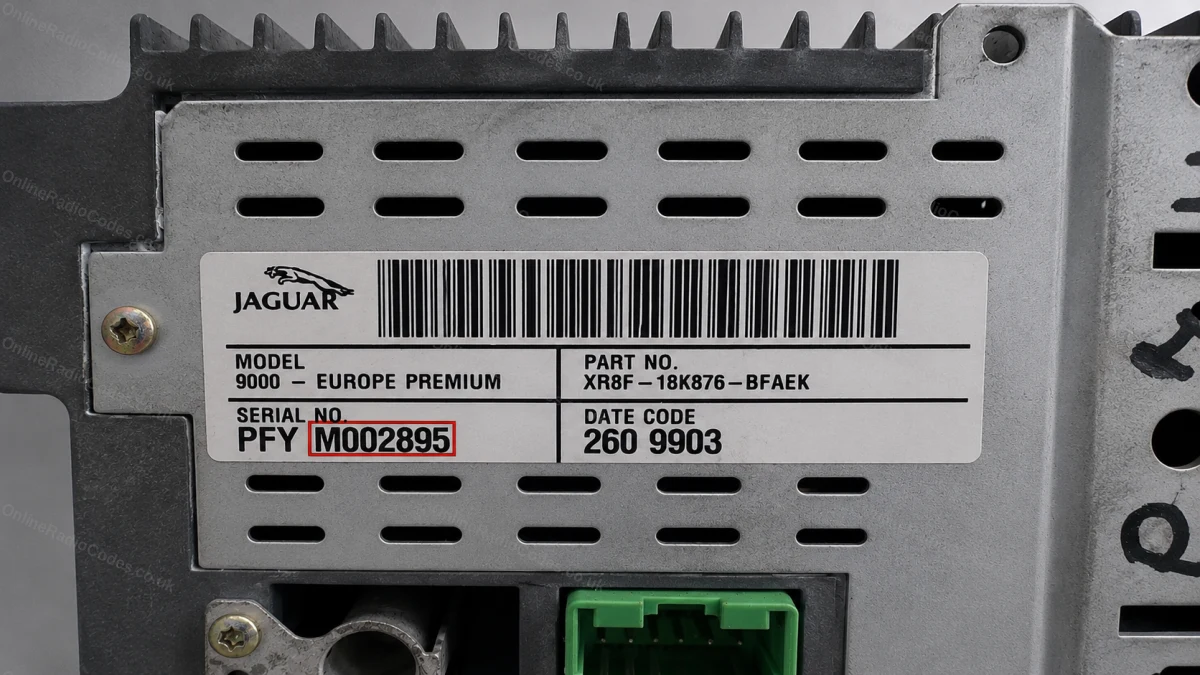

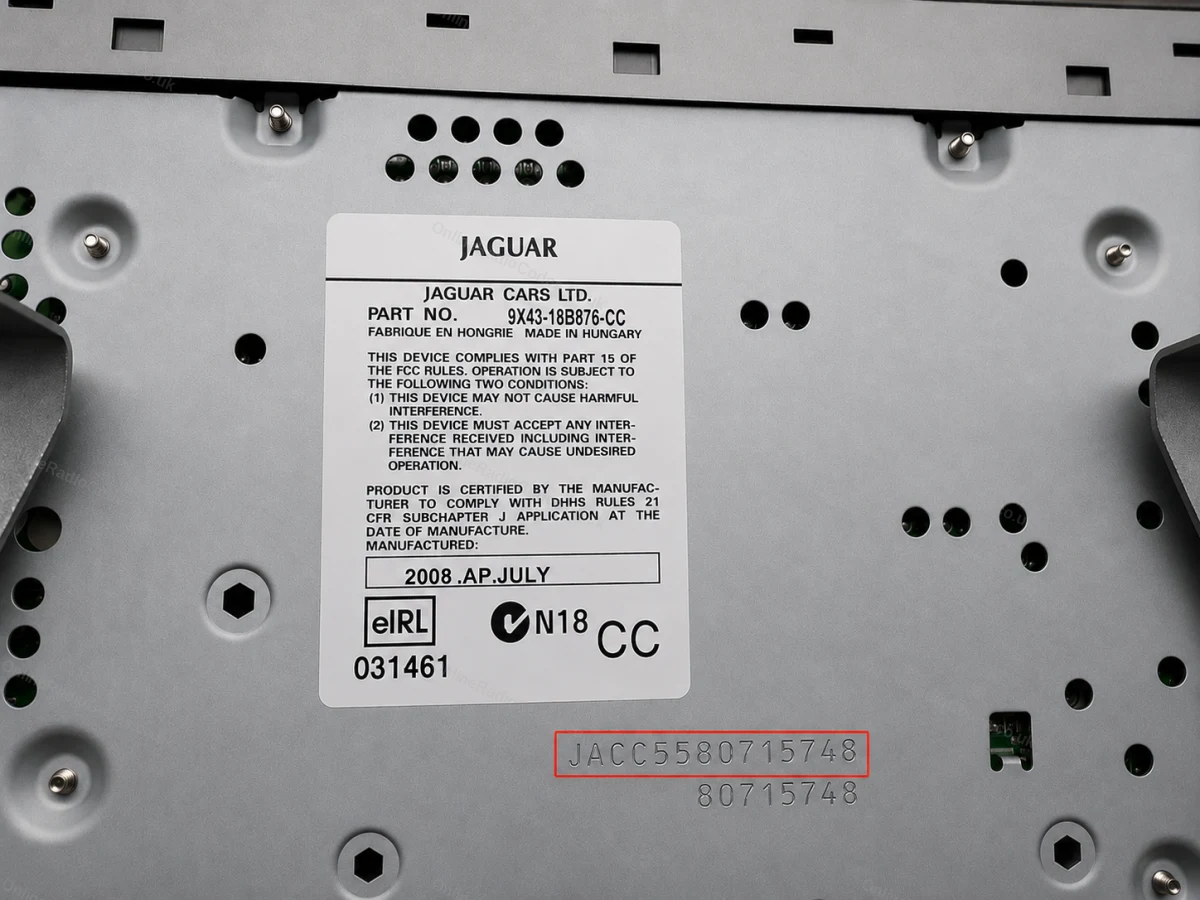

Find the serial number on the radio label which is located on the top or side of the radio casing. The serial required begins with M or JA.
Different car radio models require differently shaped removal keys.
For further help in removing your Jaguar radio, please see this YouTube video
